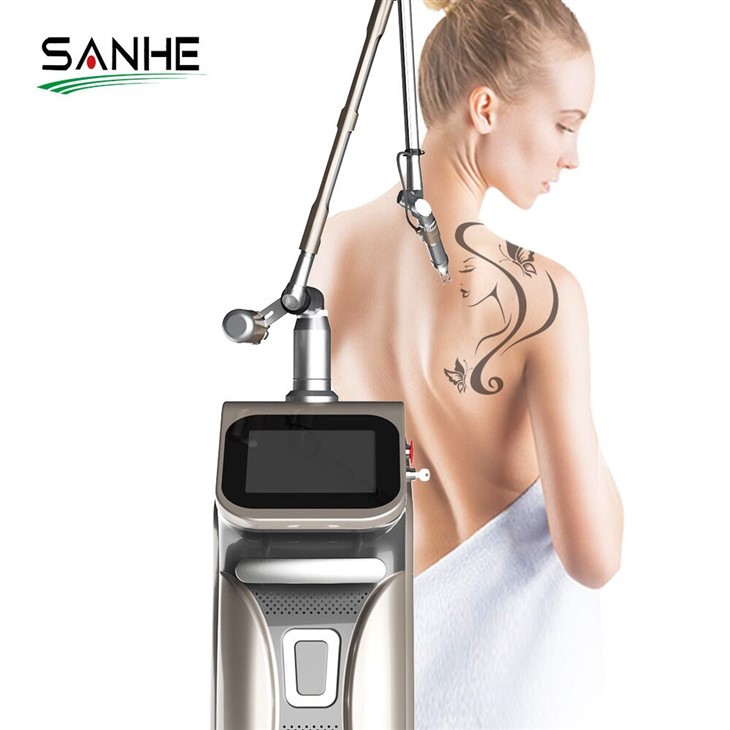

532Nm 1064Nm Pico Laser Tattoo Removal Machine
Output Energy Single Pulse: 532nm 400mj; 1064nm 800mj
Single Pulse: 532nm 800mj; 1064nm 1600mj
Energy Density(Max) 1064nm: 15.0; 532nm:6
Pulse Duration 2000PS
Repetition Rate 1-10hz adjustable
Spot Size 2-10mm adjustable
Light Guide Beam 650nm Red Light
Laser Delivery 7 Jointed Articulated Arm
Description
Technical Parameters
Specification:
|
Light Source |
Picosecond Q-Switch ND: YAG Solid-State Laser |
|
Wavelength |
1064nm, 532nm |
|
Output Energy |
Single Pulse: 532nm 400mj; 1064nm 800mj |
|
Single Pulse: 532nm 800mj; 1064nm 1600mj |
|
|
Energy Density(Max) |
1064nm: 15.0; 532nm:6 |
|
Pulse Duration |
2000PS |
|
Repetition Rate |
1-10hz adjustable |
|
Spot Size |
2-10mm adjustable |
|
Light Guide Beam |
650nm Red Light |
|
Cooling System |
Closed Cycle Water to Air Heat Exchanger |
|
Laser Delivery |
7 Jointed Articulated Arm |
|
Controlling System |
10.4 Inch TFT color touch screen |
|
Power Requirement |
220V,10A, 50/60HZ |
|
Note |
Technical data changed will not inform specially |
Video
Description
PICOSECOND ND YAG LASER SYSTEM
1. Korea import 7 joints arms.
2. lmported Lambda Lens
3. 10mm Adjustable Spot Size
4. Double and single pulse, with 2500mj high energy.
5. High-power flat-top square wave power supply.
6. Energy density intelligent detection system

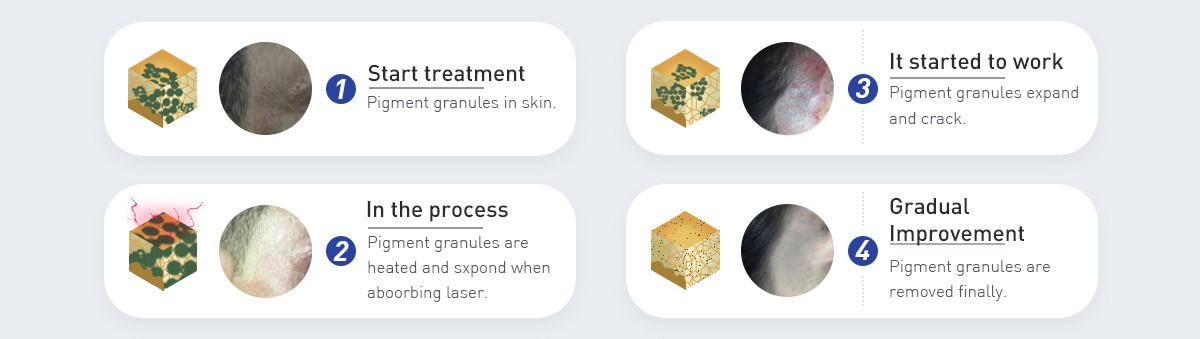

Principle:
Utilizes the explosive effect of the Picosecond laser, which permeates through the epidermis into the dermis containing the pigment mass. The laser pulses in nanosecond, super high energy. This causes the pigment mass to swell quickly and break into small pieces, which are then eliminated through body's metabolic system.
Advantage
1. Korea import 7 joints arms.
2. lmported Lambda Lens
Less Energy Loss.360 degree rotation.
Uniform output energy.
Extremely Round spot size.
Polarized Light is avoided.
3. Double Purple Laser Rod
Under the same laser rod length, the larger diameter, the higher magnification and greater output energy released.
4. High Frefequency
1-10HZ high frequency can save treatment time much more.
5. High Precision
2-10mm Adjustable Spot size can located the treatment area targetedly
6. Double and single pulse, with 2500mj high energy.
7. High-power flat-top square wave power supply.
8. Energy density intelligent detection system
VARIETY OF HANDPIECES Optional For Targeted Treatment
Fractional Handle For skin tightening, skin resurfacing.
650nm wavelength is used on greens.
Celluar handle for Skin rejuvenation treatment.
585nm handle for red, purples, multicolor tattoos
Application:
Dermal pigmentation:
Birth marks: Ota nevus, Ito nevus, black nevus, etc.
Pigmentation: sun-burn spots, age spots, speckles, freckles, senior flecks, etc.
Man made pigmentation: Blue, black, red, or brown tattoos; lip line or eyebrow line pigmentation
Epidermal pigmentation: such as freckle, senior flecks, coffee spot .... Vascular lentigines: vascular lesions, spider vessels,spider veins,Skin rejuvenation via laser peeling.
Effect
